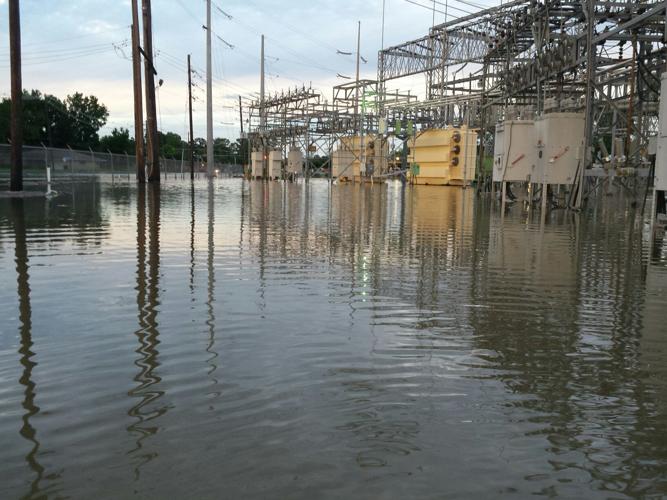

The recent rains lead to flooding that poses operational and structural risks to Peru’s electrical infrastructure. The rains trigger landslides and infrastructure damage that can disrupt electricity supply. These conditions cause power outages due to short circuits in submerged electrical components, automatic tripping of protection systems, and damage to transmission or distribution lines. Electrical utilities often shut down sections of the grid to prevent equipment damage to protect public safety. Flooding and heavy rainfall also increases the risk of erosion and landslides. These lead to collapsed distribution poles and damage to transmission towers. Flooding also causes failure of switchgear and protection systems, contamination of transfer insulating oil, and damage to control panels and monitoring equipment. Utilities put in measures to address these conditions and improve grid and infrastructure reliability. This includes the use of high-quality suspension insulators.

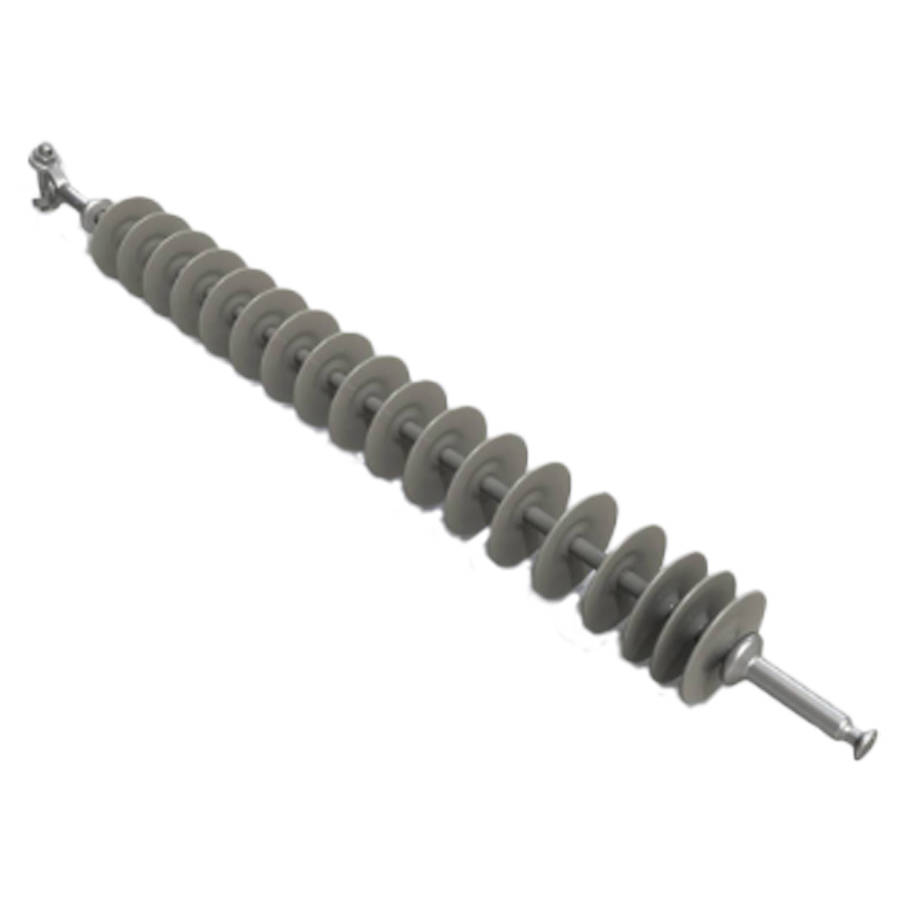

Electrical insulators protect electrical equipment during flooding and heavy rain. Their design and material properties help maintain insulation and prevent power outages. Water from floods can create a path for electricity to jump from the conductor to the grounded tower to cause a flashover. Suspension insulators have a disc shape that allows rainwater to run off from the upper surfaces. They prevent the formation of a film of water that could conduct electricity. Their shape also creates creepage distance to improve performance in wet conditions. Suspension insulators are designed to bear tensile loads from the conductor. Polymer insulators are lightweight and reduce the strain on transmission towers during severe weather. Suspension insulators maintain a dry and insulating barrier to prevent short circuits during floods.
Quality assurance for suspension insulators used in electrical infrastructure
Conducting quality assurance for suspension insulators helps maintain transmission reliability and prevent electrical failures. The insulators support conductors while isolating them from towers or poles. Suspension insulators must undergo testing and quality verification before deployment in Peru’s diverse environments. Suspension insulators must follow relevant standards to meet electrical and mechanical requirements. This helps meet reliable performance in high-voltage transmission systems. The quality assurance process includes raw material verification, mechanical strength testing, electrical performance testing, and weather resistance testing. This ensures the insulator can withstand high voltages, mechanical loads, and harsh environmental conditions. Utilities and suppliers help ensure the reliability, safety, and long-term performance of Peru’s transmission and distribution networks.
Suspension insulators protecting electrical infrastructure in Peru’s floods
Suspension insulators support overhead conductors while isolating them from grounded structures. The insulators maintain electrical safety, prevent faults, and preserve the stability of power infrastructure. They ensure the reliability and safety of Peru’s power grid during extreme weather events. Here is how suspension insulators protect electrical infrastructure in Peru.
- Electrical isolation of conductors from grounded structures—suspension insulators provide dielectric separation between energized conductors and grounded poles.
- Maintaining creepage distance in wet conditions—the insulators are designed with sheds that increase creepage distance. Suspension insulators reduce the likelihood of surface tracking and flashovers that could disrupt transmission lines.
- Supporting conductors—the insulators protect the infrastructure by supporting the mechanical weight and tension of conductors. They also allow limited movement of the conductor during displacement.
- Preventing flashovers during high humidity—the insulators provide long insulation paths that reduce voltage gradients and maintain dielectric strength in wet environments.
Measures put in place to protect electrical infrastructure in Peru during flooding
Flooding can damage transmission and distribution networks, substations, and critical equipment. This causes prolonged outages and economic losses. Utilities and government agencies have put in place structural, operational, and planning measures. These measures are to enhance grid resilience. These measures include:
- Elevation and flood-proofing of substations—these include elevated equipment platforms, flood walls and perimeter barriers, and sealed control buildings.
- Improved drainage and water management—utilities put in place perimeter drainage channels, sump pumps and drainage pits. This reduces the risk of soil erosion and water pooling that can destabilize electrical structures.
- Reinforcement of transmission and distribution structures—protection measures include reinforced foundations for poles and towers, anchoring with guy wires, and use of corrosion-resistant materials.
- Integration of surge protection and insulation measures – utilities can adopt installation of line surge arresters to protect transformers and substations from lightning. They can also use high-quality suspension insulators to maintain dielectric performance in wet conditions.
